Pipe-Line Reinforcing Mesh Crimped Galvanized 25.4 mm x 67 mm Mesh x 190.5 mm Strips

Pipeline Reinforcing Mesh is crimped wire mesh in coils used for subsea pipelines concrete encasement.

It is made by deeply pre-crimped steel wire welded in special pattern. Heavily galvanized, Crimped Welded Wire Mesh is widely used in concrete weight coating for subsea/onshore pipelines.

We supply pipeline reinforcing welded mesh to UAE, USA, Canada, Vietnam, Peru, Turkey and other countries.

Specifications of pipe-line reinforced mesh

Material: Low Carbon Steel Wire.
Wire Form: Crimped
Surface: Heavy zinc galvanized, epoxy coated
Mesh Construction: Spot welded
Standard: ASTM 810 standard, ASTM 185, A82 standard.
Custom specifications: Available.

The material of pipe-line reinforced mesh is low carbon steel wire pre crimped with galvanized coating. Galvanized wire can be cold galvanized wire or hot dipped galvanized meeting the ASTM standard. The line wires are deeply crimped to facilitate the concrete application. The reinforcing mesh is firmly spot welded.

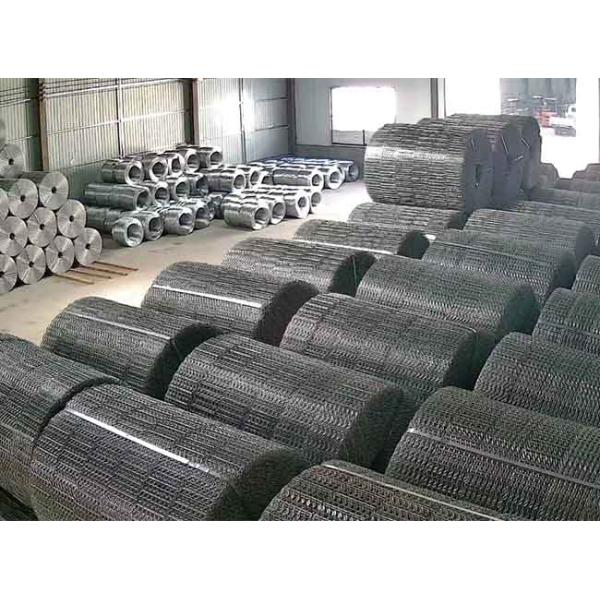

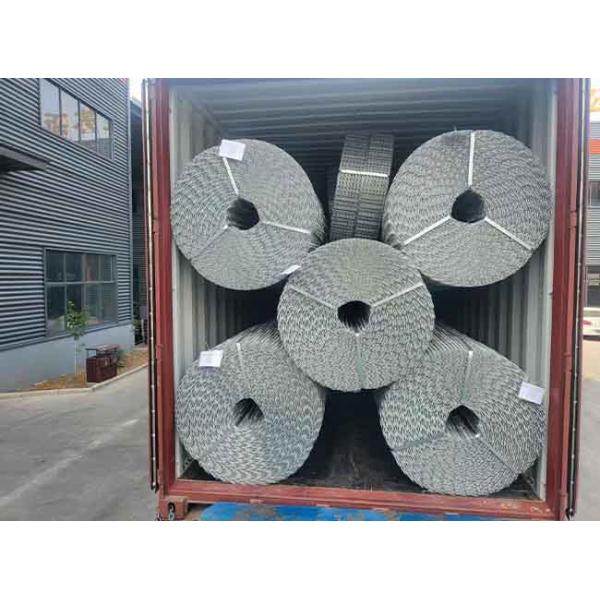

The reinforcing mesh is supplied in rolls or strips for light gauges, flat panels for heavy types.

Functions: Welded crimped mesh in pipeline concrete coating can reinforce the concrete layer, enhancing the structural integrity and resistance to cracking and impact during pipeline installation and operation.

Welded Wire mesh Reinforcement Galvanized Crimped Conforming To ASTM 810

Pipeline Reinforcing Welded Mesh Galvanized Crimped 25.4mm x 67mm hole x 190.5mm Width x 165m Length

Specifications:

Width: 7½ Width (190.5 mm)
Mesh Size: 67 mm X 25.4 mm
Number Of Line Wire/Width: 8
Wire Dia: 2.10 mm (Line Wire) X 1.70 mm (Cross Wire)
Roll Length: 165 M
Quality: ASTM A810, "Standard Specification for Zinc-Coated (Galvanized) Steel Pipe Winding Mesh."

Pipeline Reinforcing Welded Mesh Galvanized Crimped 25.4mm x 67mm hole x 190.5mm Width x 160m Length

Specifications:

Width: 7½ Width (190.5 mm)
Mesh Size: 67 mm X 25.4 mm
Number Of Line Wire/Width: 8
Wire Dia: 2.20 mm (Line Wire) X 1.80 mm (Cross Wire)
Roll Length: 160 M
Quality: ASTM A810, "Standard Specification for Zinc-Coated (Galvanized) Steel Pipe Winding Mesh."
