    Stainless Steel 304 Leaf Disc Filter Screen Mesh 0.5-200 µm

    Ask Lasest Price
    Brand Name : Cittimesh
    Model Number : Wire mesh or TP retainer
    Payment Terms : L/C,T/T
    Price : Negotiable
    Supply Ability : in abundant supply
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

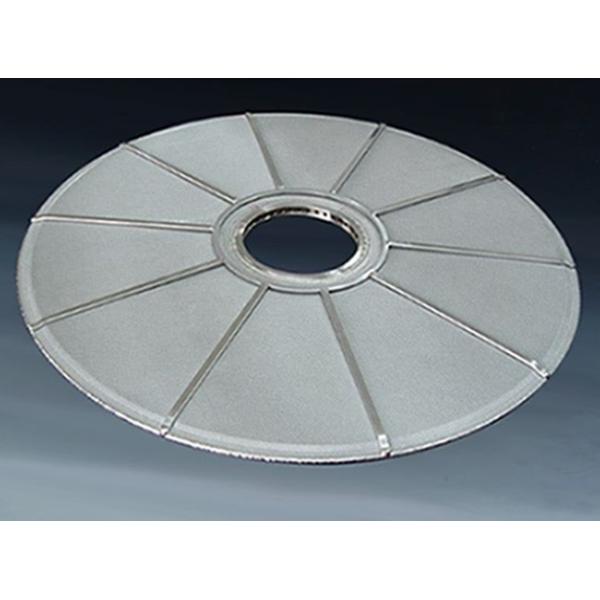

    Stainless Steel 304 Leaf Disc Filter Screen Mesh 0.5-200 µm


    Leaf Disc Filter Maximizes the Effective Filter Area, which is good for high-molecular polymer filtration and suitable for long-run operation


    Leaf Disc Filter Maximizes The Effective Filter Area, Can Be Washed Repeatedly And Suitable For Long-Run Operation.

    Leaf Disc Filte Product:


    Leaf disc filter is made of sintered stainless steel (304, 316,316L) wire mesh laminates or sintered metal non-woven felt medium,which is good for high-molecular polymer filtration. The unique disc design and configuration help to maximize the increased effective filter area and shortened the residence time of the polymer, thereby lowering the risk of polymer degradation and offering fast, efficient filtration of polymer melt filtration applications.All of the leaf disc filters are made with high mechanical strength and suitable for long-run operation.


    Leaf disc filter Feature:

    • High viscosity and large flow
    • Can be washed repeatedly.
    • Good mechanical strength
    • High filtration accuracy
    • Good dirt holding capacity.
    • Long service life
    • Corrosion and abrasion resistance.

    Leaf disc filter Specification:


    ProductLeaf disc filter
    Materialstainless steel 304, 316, 316L,sintered wire mesh, sintered metal fiber felt
    Working pressure≦31.7MPa
    Working temperature≦300℃
    Medium viscosity≦260Pa.s
    Micron rating0.5–200 µm
    Porosity70%–85%
    Outside diameter177.8–304.8 mm
    Inner diameter72.5 mm (max.)
    Overall thickness6.5–10.5 mm

    Leaf disc filter Applications:

    • Optical films.
    • Protective films.
    • Electric films.
    • Polycarbonate granulation.
    • Compound processing.
    • food.
    • chemical.
    • beverage.
    • water treatment industries.


    Stainless Steel 304 Leaf Disc Filter Screen Mesh 0.5-200 µm


    Used in the food, chemical, beverage, waste, and water treatment industries


    Stainless Steel 304 Leaf Disc Filter Screen Mesh 0.5-200 µm


    Used in the food, chemical, beverage, waste, and water treatment industries
